ژنراتور ماکروویو یک کیلو وات

One kilowatt microwave generator model: MWG2410SF

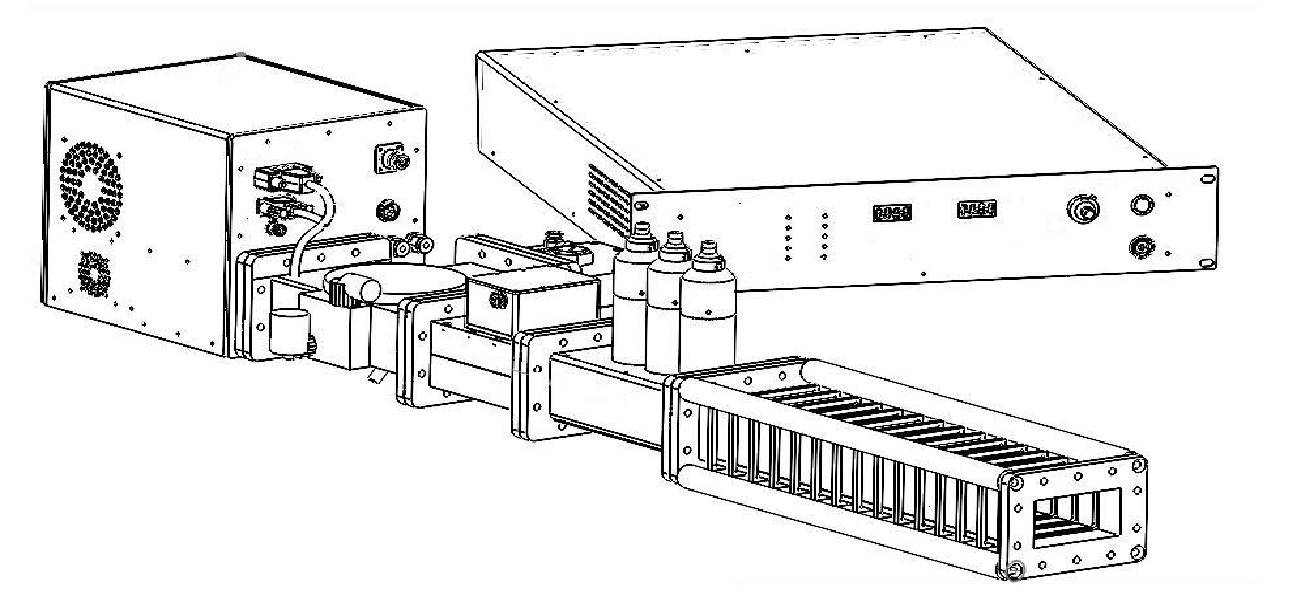

The MWG2410SF system is a complete 1 kilowatt (1000 watt) microwave generator system designed and manufactured by Sivafen. This system receives the city’s single-phase electricity and produces it in a controlled manner in the output waveguide of microwave power with a frequency of 2.45 GHz with adjustable power between about 200 watts and 1000 watts. This system has all the necessary components for production, control, protection and measurement, as well as matching the impedance of the load to the generator. The waveguide standard of this generator is WR340. The advanced electronic circuits of this system provide the necessary conditions for continuous output power generation.

This system is equipped with a circulator and waterload, which act as an isolator and provide the necessary professional protection to increase the lifespan and better stability of the output. The wattmeter connected to the output of the circulator measures the transmitted and reflected power and sends it to the control-display system for analysis and display. Stub Tuner 3 stubs connected to the directional coupler is able to perform the impedance matching process in a wide range.

Including system applications as follows:

  • The energy source of plasma production in various ion sources, including ECR.
  • Atmospheric pressure microwave plasma burners.
  • Vacuum plasma processing systems.
  • PECVD and RIE systems and activation.
  • Microwave heating systems such as food and wood dryers and polymer curing.
  • Sintering systems and production of metal and ceramic powders.
  • Heat treatment and melting of materials.
  • …

main technical specifications This system consists of :

  • 1. Output power range: about 200 watts to a maximum of 1000 watts.
  • 2. Input power: 200 to 240 V city electricity.
  • 3. Input power factor: better than 90%. Equipped with a power factor correction circuit.
  • 4. Operation independent of city electricity and independent of changes in load.
  • 5. Main power supply function: switching, pseudo-resonance with high efficiency.
  • 6. Display: transmission power and reflection power.
  • 7. Protections and warnings: monitoring and analysis and control and applying protection on sixteen different parameters in the system.
  • 8. Display warnings and errors with lights.
  • 9. Adjusting power with volume.
  • 10. Ability to control and adjust and monitor parameters remotely.
  • 11. Ability to perform impedance matching in a wide range with the help of stub tuner.
  • 12. Having a complete set of equipment, this generator has the ability to perform processes in a completely repeatable and controlled manner.
  • 13. One-year warranty and after-sales service.
